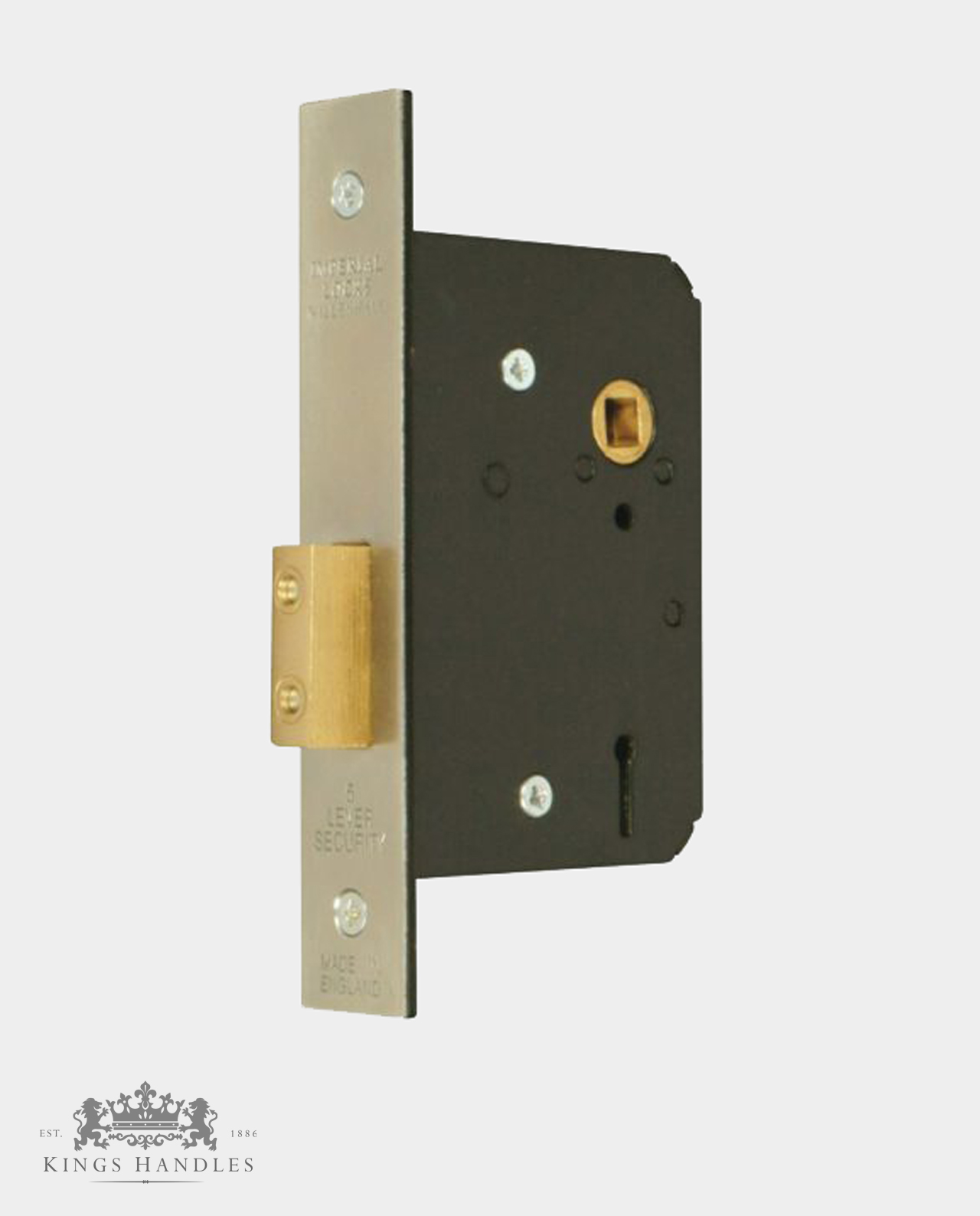

5 Lever mortice escape deadlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. In standard one-way action, deadbolt thrown or withdrawn by key from either side and withdrawn by lever handle or turn knob from inside Two-way action deadbolt thrown or withdrawn by key or handle from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 150 standard differs.
- Operation: In standard one-way action, deadbolt thrown or withdrawn by key from either side and withdrawn by lever handle or turn knob from inside Two-way action deadbolt thrown or withdrawn by key or handle from either side
- Striker Plate: Box, Type M
- Deadbolt: Brass, with two hardened steel rollers. Throw 13mm
- Follower: Brass, to suit 8mm square spindle. One-way action as standard Two-way available on request
- Differs: 150 standard differs
- Rebate Units To Suit: DL/G3051-13mm DL/G3052-19mm DL/G3053-25mm
- A Lock Case: 76mm, 101mm
- B Backset: 57mm, 82mm
- C Centres: 57mm, 57mm
