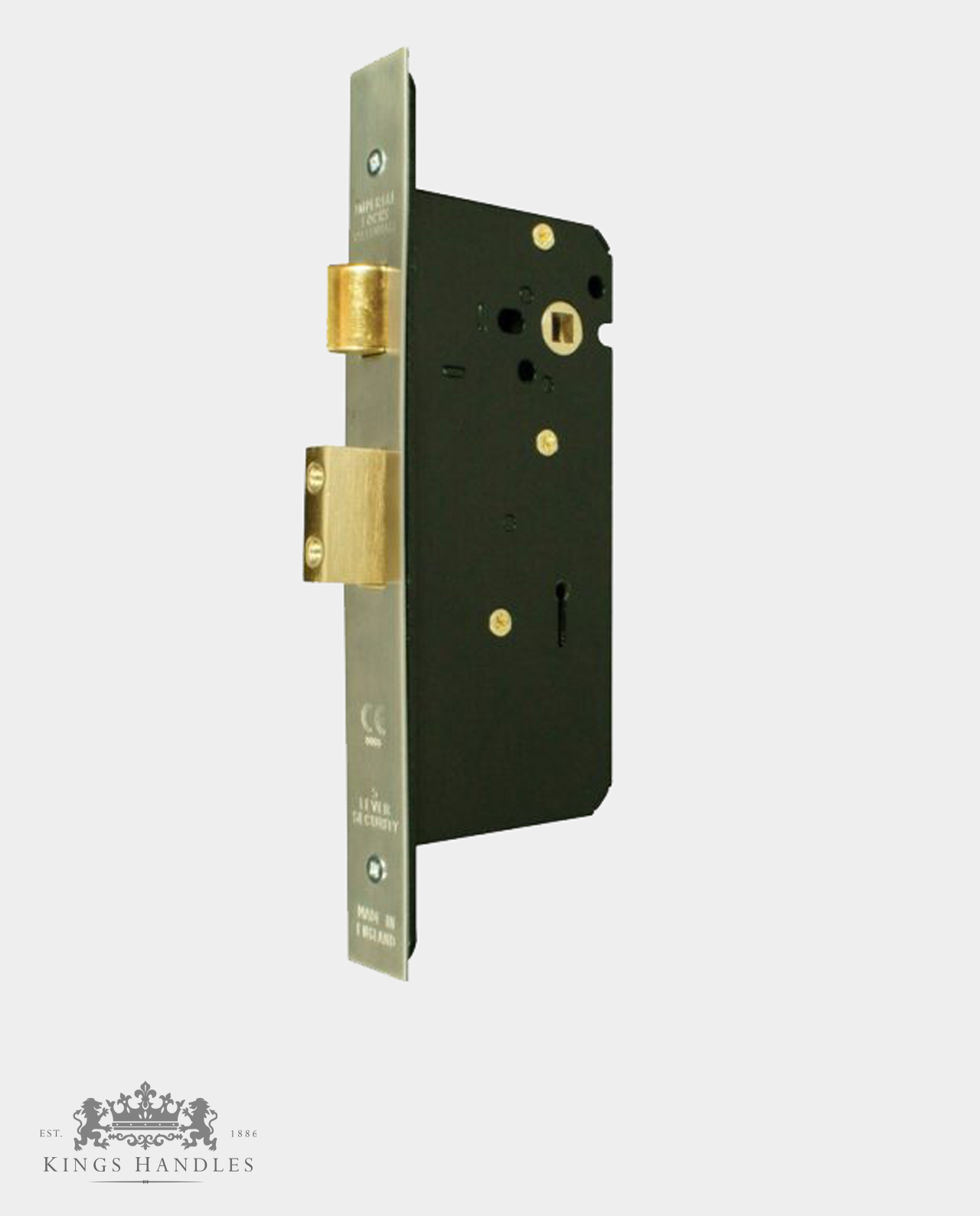

DDA compliant 5 Lever mortice sashlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 200 standard differs.
- Operation: Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side
- Case: Pierced to accept 38mm centre horizontally and 38mm centre diagonally opposed bolt through fixing furniture, 63mm size pierced diagonally only.
- Forend: Size 235mm X 25mm
- Striker Plate: Type P with box
- Latchbolt: Brass, reversible. Projection 12mm
- Deadbolt: Brass, with two hardened steel rollers. Throw 16mm
- Follower: Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture. For unsprung lever handle furniture heavy duty springing should be specified
- Differs: 200 standard differs numbered 001-200
- Rebate Units To Suit: G72-3051-13mm G72-3052-19mm G72-3053-25mm
- Box: for Type ‘P’ Strike, DUSTBOX3 – Included
- A Lock Case: 63mm, 76mm, 101mm
- B Backset: 45mm, 57mm, 82mm
- C Centres: 72/85/92/101mm
