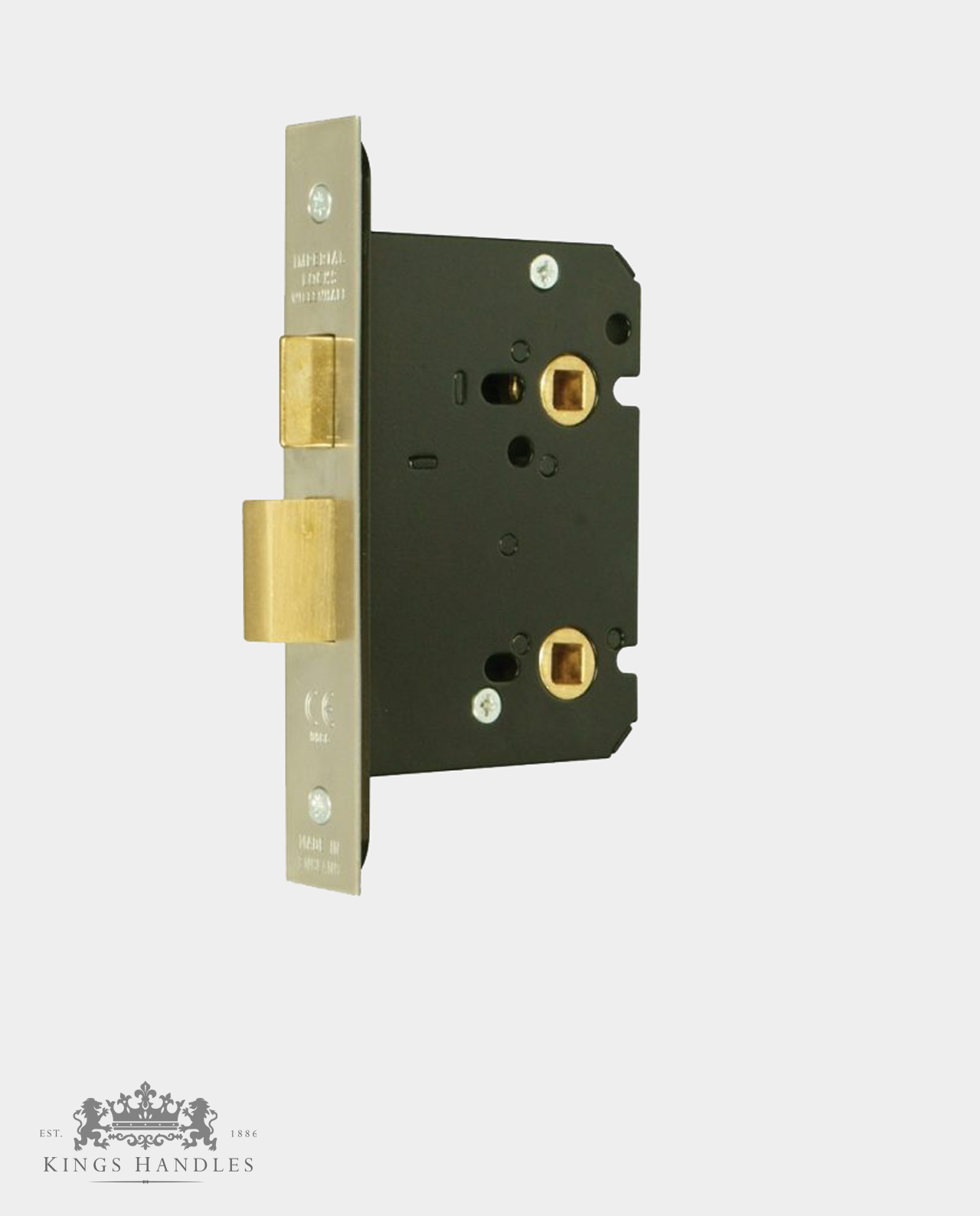

Bathroom mortice lock for use on wooden hinged doors. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side Deadbolt operated by turn from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
- Operation: Latchbolt operated by lever handle from either side Deadbolt operated by turn from either side
- Case: 76mm and 101mm sizes pierced to accept 38mm centre horizontally and diagonally opposed bolt through fixing furniture 63mm size pierced diagonally only
- Striker Plate: Type A
- Latchbolt: Brass. Projection 12mm
- Deadbolt: Brass. Throw 14mm
- Latchbolt Follower: Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture. For unsprung lever handle furniture heavy duty springing should be specified
- Deadbolt Follower: Brass, to suit 8mm square spindle
- Rebate Units To Suit: G3051-13mm, G3052-19mm, G3053-25mm
- Box: DUSTBOX1 – Sold Separately
- A Lock Case: 63mm, 76mm, 101mm
- B Backset: 45mm, 57mm, 82mm
- C Centres: 57mm
